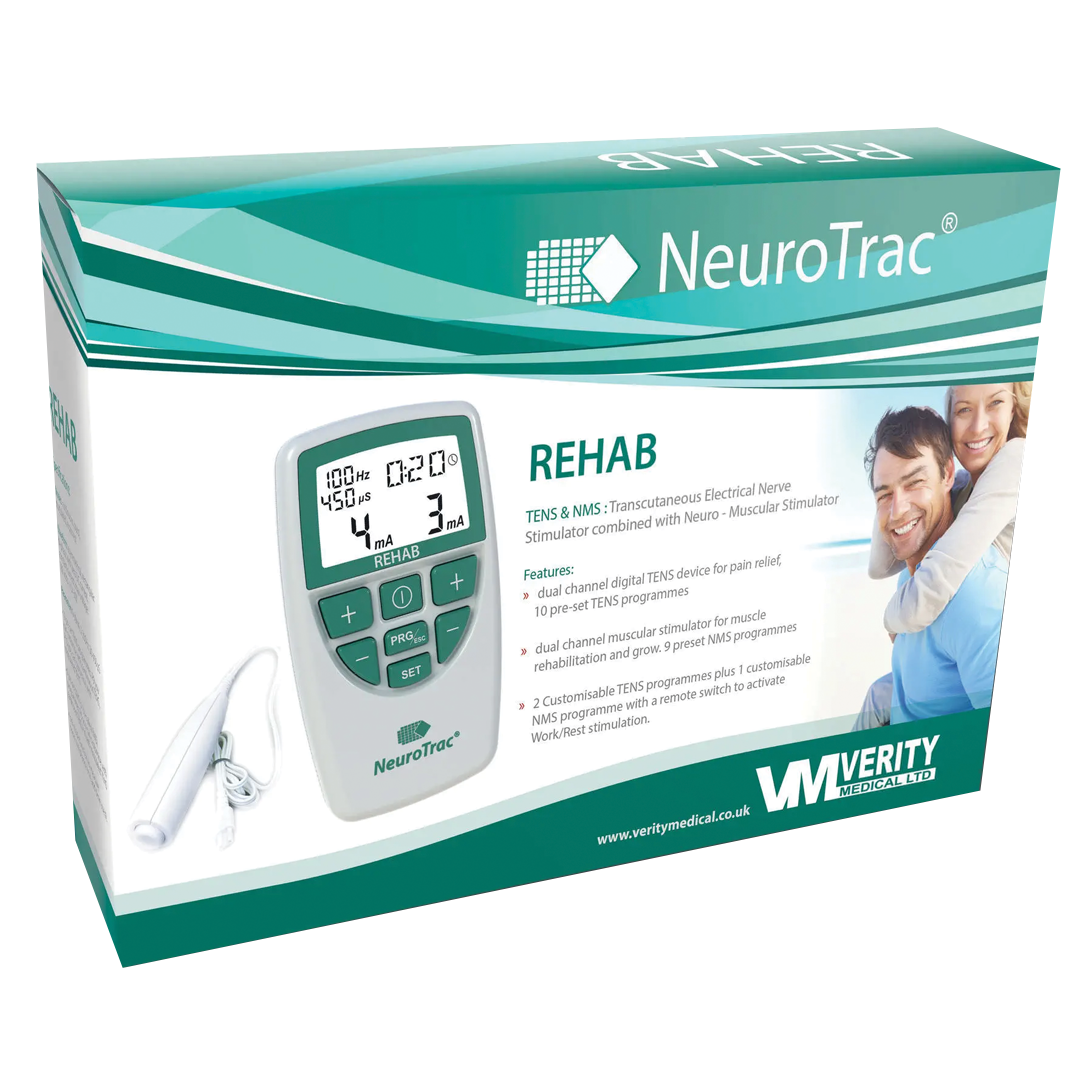

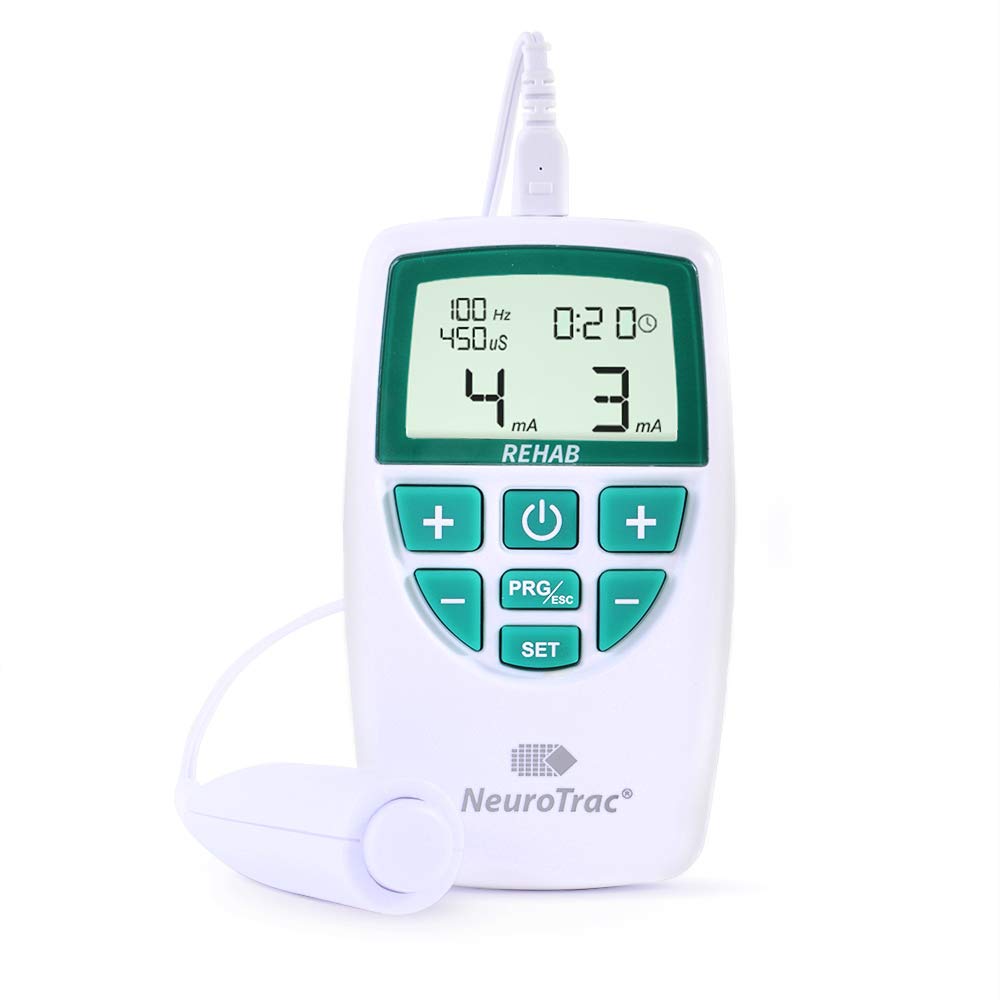

NeuroTrac Rehab TENS EMS Unit | Effective Pain Relief & Rehabilitation Device Australia

Experience advanced pain management and muscle rehabilitation with the NeuroTrac® Rehab TENS EMS Unit. Designed for those grappling with muscle pain or undergoing recovery, this device boasts dual functionalities – TENS (Transcutaneous Electrical Nerve Stimulation) for pain relief and EMS (Electrical Muscle Stimulation) for muscle strengthening.

Key Features

• Combined TENS and EMS unit for versatile usage
• Includes 2 × dual lead wires and 4 × self-adhesive electrodes (50 × 50 mm)
• Comes with a 9V PP3 battery for immediate use
• Portable with a soft carry bag, ideal for on-the-go therapy
• Clear and easy-to-follow operating manual

Who Can Benefit?

• Australians seeking a home-based solution for pain management and muscle rehabilitation
• Individuals recovering from injuries
• People with chronic pain requiring relief
• Those needing muscle strengthening support

Why Choose NeuroTrac® Rehab?

• Convenience: Compact design allows for therapy sessions at home or on the move.
• Efficiency: Dual lead wires enable targeted treatment for optimal results.
• Simplicity: User-friendly controls ensure easy operation for all ages.

Embrace effective pain relief and enhanced rehabilitation with the NeuroTrac® Rehab TENS EMS device. Order today, and take the first step towards a pain-free lifestyle!

Technical Specifications

TENS and STIM (Neuromuscular Stimulation)

• Channels: Dual channel with individually isolated circuits
• Amplitude: 0–90 mA into 500 Ω load (indication only)
  • Max limited to 70 mA at 1000 Ω
  • Max limited to 65 mA at 1500 Ω
• Type: Constant current, maximum output voltage 180 V (+10 / -30 V)
• Waveform: Asymmetrical, rectangular, bi-phasic with zero DC current
• Pulse Width: Selectable 50–450 μS (±2% accuracy)
• Pulse Rate: 2–200 Hz (±2% accuracy)
• Modes: Continuous, Burst, or Modulated
• Burst Mode: Bursts of 9 pulses (200 μS) at 150 or 185 Hz over 2 seconds
• Modulation Mode:
  • TENS 7: Width 50–250 μS (exponential cycle), rate 20–85–100 Hz
  • TENS 8: Width fixed at 200 μS, rate 32–100–32 Hz cycle
• Custom Program Duration: 1 minute to 12 hours
• Safety Features:
  • Low battery indicator flashes when below 6.9 V (±0.2 V)
  • Unit will not power on if voltage drops below 6.6 V (±0.2 V)
  • Open electrode detection resets output current to zero

Physical

• Dimensions: 119.2 × 69 × 28.7 mm
• Weight: 70 g (without battery), 100 g (with battery)

Operating Conditions

• Operating: +5°C to +40°C, 15–90% humidity
• Storage & Transport: -25°C to +70°C, 15–90% humidity
