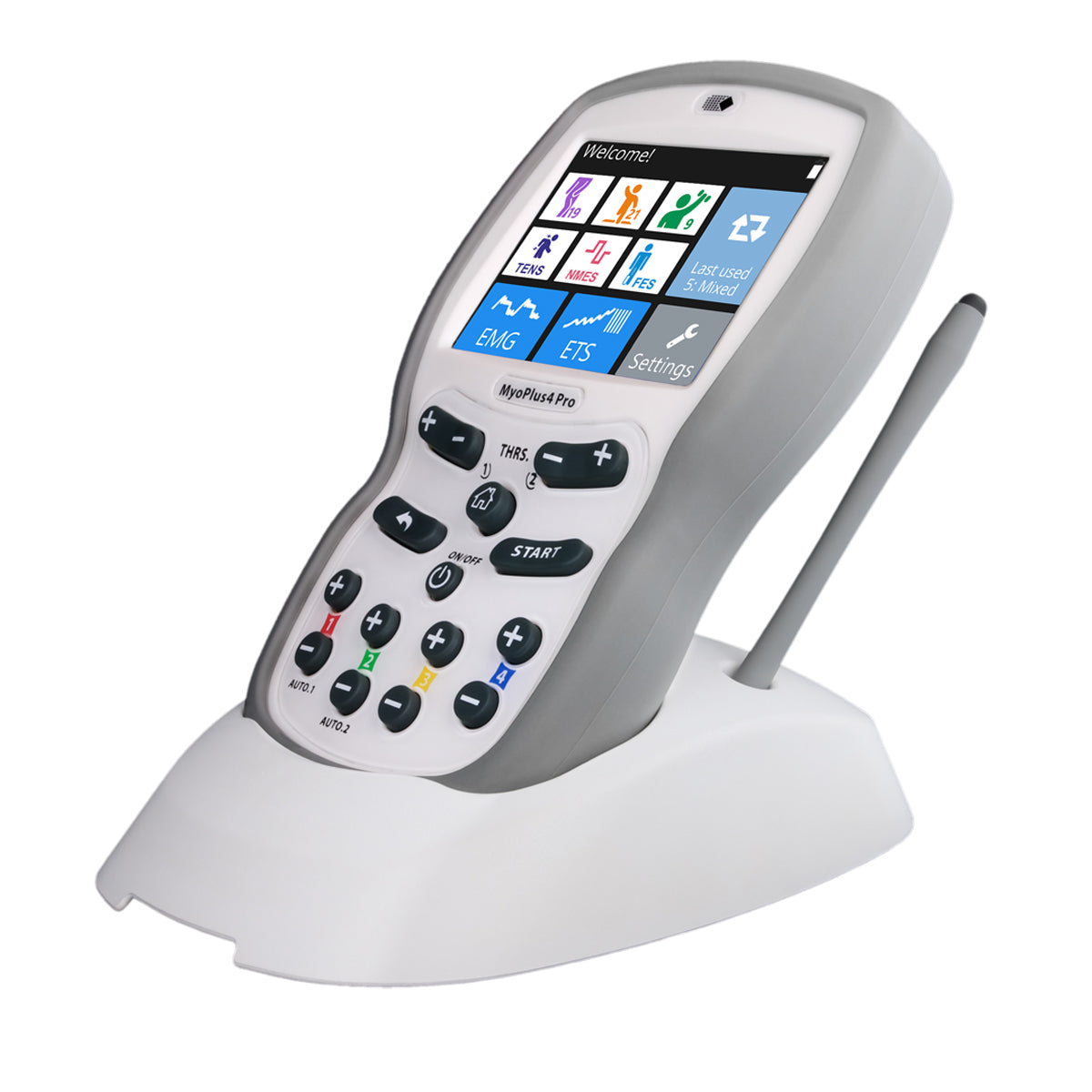

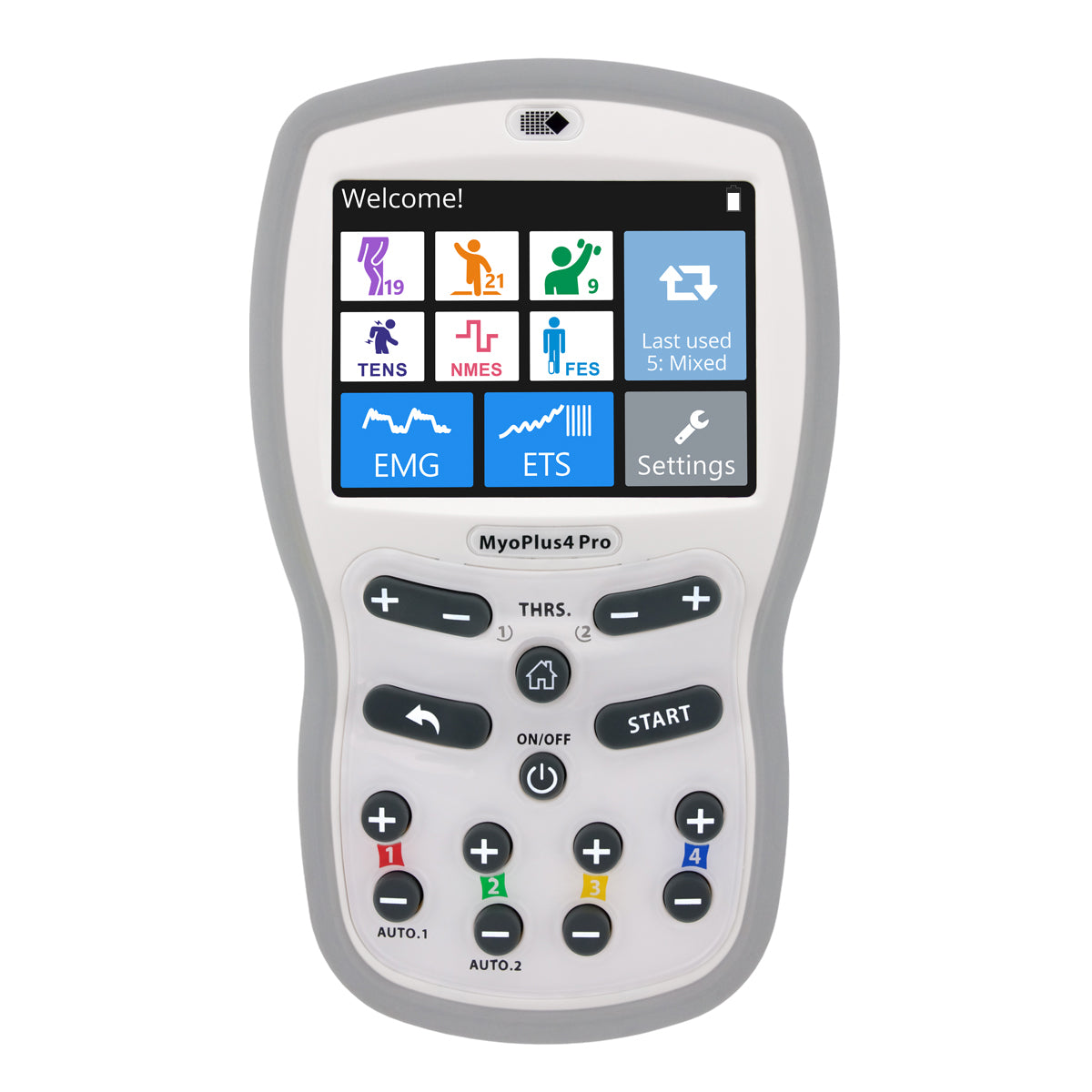

Neurotrac Myoplus 4 - TENS, EMS & Massage Device with Dual Channels for Pain Relief and Muscle Stimulation in Australia

Experience cutting-edge muscle therapy and relaxation with the Neurotrac Myoplus 4. This advanced, all-in-one device combines TENS, EMS, and massage functionalities to provide effective pain relief and muscle stimulation for Australians looking to enhance their health and wellbeing.

Key Features

• 4-in-1 Functionality: Combines TENS for pain relief, EMS for muscle conditioning, and soothing massage features.
• Dual Channel System: Target different muscle groups simultaneously for efficient and customised therapy.
• Rechargeable and Portable: Enjoy uninterrupted sessions with a rechargeable battery and compact design perfect for home or travel use.

Why Choose the Neurotrac Myoplus 4?

• Multiple Health Applications: Ideal for sports enthusiasts, office workers, and individuals seeking pain management or recovery support.

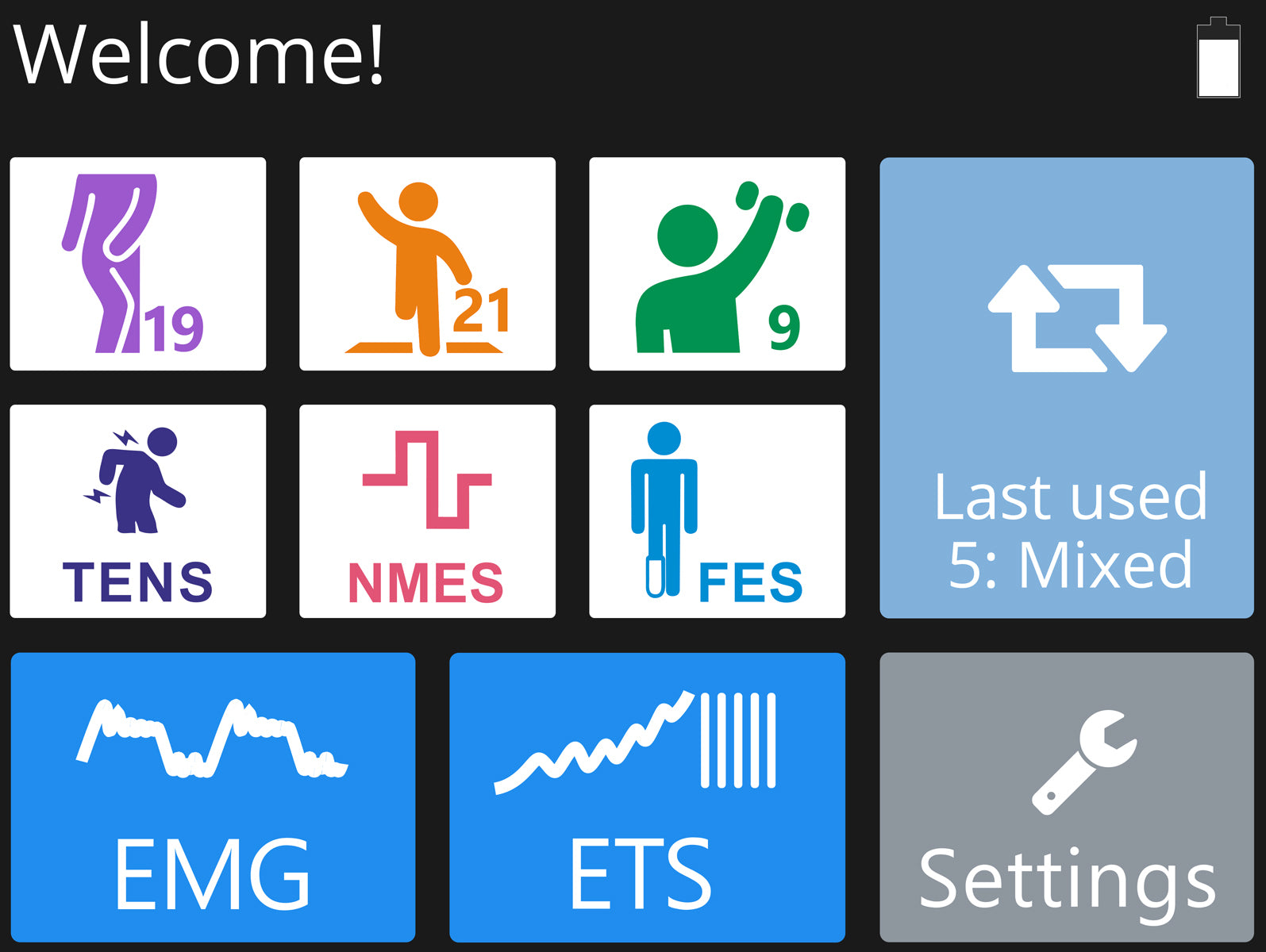

• User-Friendly Interface: Easy to navigate controls make using the device straightforward and stress-free.
• Safe and Non-Invasive: Benefit from reliable pain and muscle therapy without the need for medication.

Get back to feeling your best with the Neurotrac Myoplus 4—your trusted companion for effective therapy made easy. Whether you're dealing with persistent pain or looking to boost muscle health, this device offers a hassle-free solution tailored for Australian buyers.

Technical Specifications

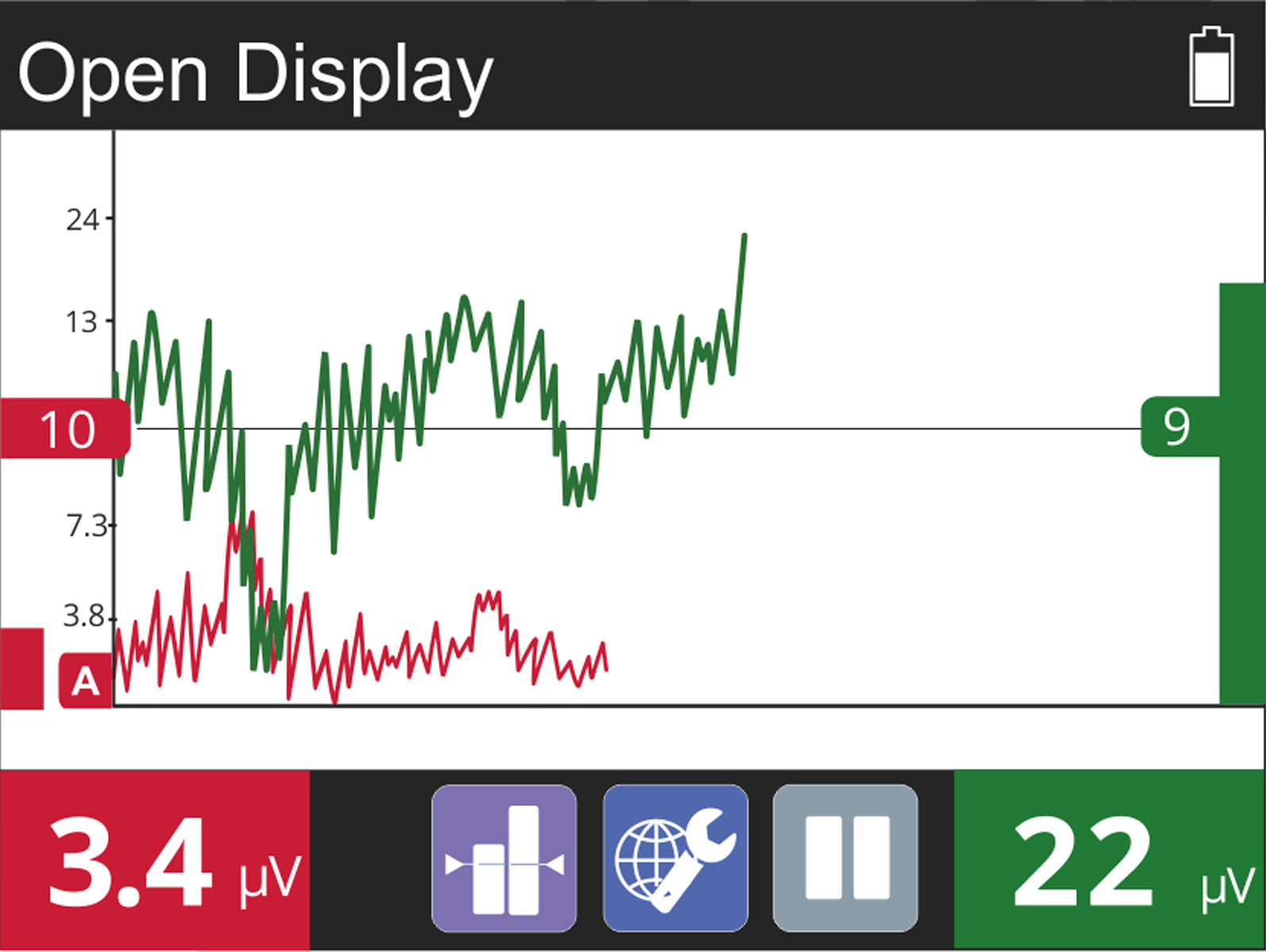

EMG (Biofeedback)

• Channels: Dual channel EMG
• Range: 0.2 – 2000 μV RMS (continuous)
• Sensitivity: 0.1 μV RMS
• Accuracy: 4% of μV reading ±0.3 μV at 200 Hz
• Selectable Bandpass Filter:
  • Wide: 18 Hz ±4 Hz to 370 Hz ±10% (below 235 μV: 10 Hz ±3 Hz to 370 Hz ±10%)
  • Narrow: 100 Hz ±5% to 370 Hz ±10%
• Notch Filter: 50 Hz (Canada 60 Hz) – 33 dB (0.1% accuracy)
• Common Mode Rejection Ratio: 130 dB minimum @ 50 Hz
• Work / Rest Periods: 2 – 99 seconds
• Number of Trials: 1 – 99

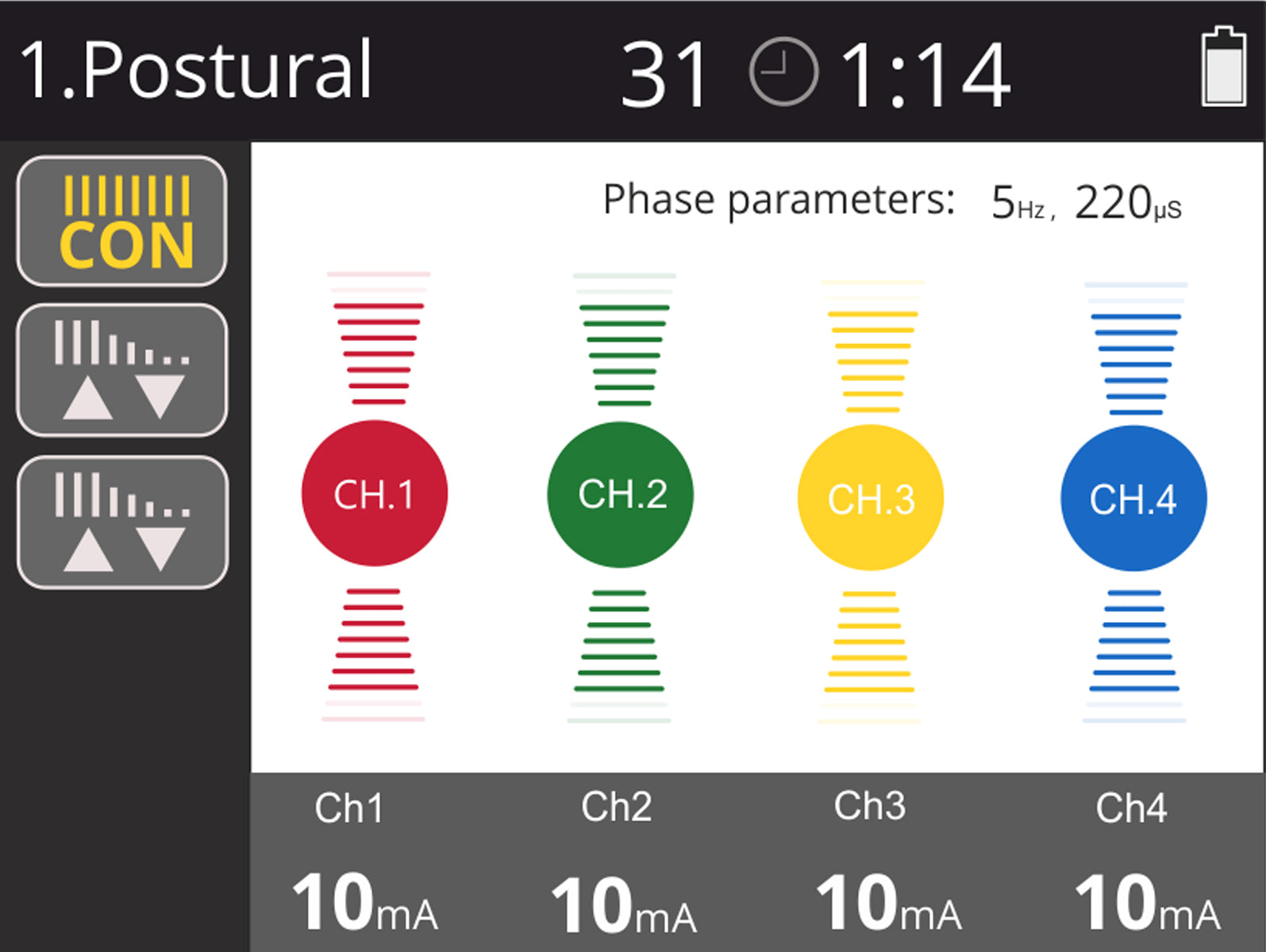

STIM (Neuromuscular Stimulation)

• Channels: 4-channel stimulator
• Amplitude: 0 – 90 mA into 500 Ω load (max 75 mA at 1000 Ω, 50 mA at 1500 Ω)
• Type: Constant current, maximum output voltage 70 V (+5 / -10 V)
• Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
• Pulse Width: 50 – 450 μS (±2% accuracy)
• Pulse Rate: 2 – 100 Hz (±2% accuracy)
• Work / Rest Periods: 2 – 99 seconds
• Time: 1 – 99 minutes
• Ramp Up Time: 0.1 – 9.9 seconds
• Programs: Preset and user-programmable treatment programs
• Safety: Automatic output shut-off when open electrode detected above 0.5 mA

Battery

• 4 × 1.5V AA batteries
• Low battery indication: 4.2–4.4 V (±0.2 V)
• Automatic shut-off below low indication voltage
• Auto power-off when inactive (1 minute in settings, 0 mA stimulation)
• Average battery life:
  • MyoPlus 2: 12 – 16 hours in STIM mode, 25 hours in EMG mode
  • MyoPlus 4: 8 – 16 hours in STIM mode, 25 hours in EMG mode

Environmental Conditions

• Operating: +5°C to +40°C, 15–90% humidity
• Storage & Transport: -25°C to +70°C, 15–90% humidity

Physical

• Dimensions: 150 × 89 × 35 mm
• Weight: 0.16 kg (without batteries)
