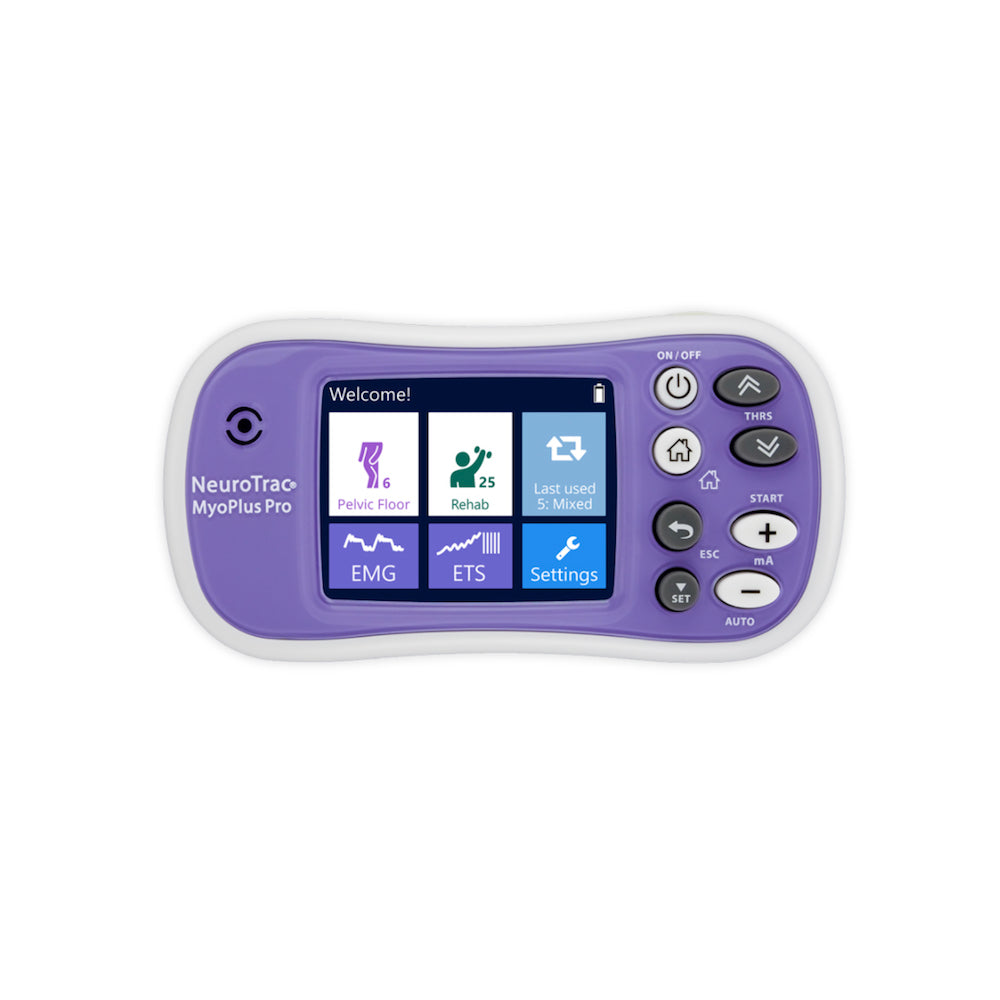

Neurotrac Myoplus PRO TENS & EMS Muscle Stimulator 4-Channel Therapy for Pain Relief & Recovery in Australia

Experience cutting-edge muscle therapy with the Neurotrac Myoplus PRO, your ultimate solution for pain relief and muscle recovery. Perfect for Australians seeking effective, at-home treatment, this advanced TENS and EMS unit merges pioneering technology with ease of use.

• Multi-Channel Stimulation: four-channel system offering diverse therapy options including TENS, EMS, and microcurrent stimulation.
• Intuitive User Experience: Ideal for both beginners and seasoned users. Customise your sessions with ease, ensuring targeted relief where you need it most.
• Versatile Therapeutic Applications: Suitable for muscle recovery, pain management, and nerve stimulation. Whether you're an athlete or need post-surgery support, this unit is designed to meet your needs.
• Aussie Adaptability: Designed with Aussie users in mind, it delivers high-performance results, perfect for home use or on-the-go therapy.
• Safe and Certified: Feel confident with a device that meets Australia's strict safety standards, ensuring dependable and effective treatment.

Join thousands of Australians achieving improved health outcomes with the Neurotrac Myoplus PRO. Say goodbye to persistent pain and hello to a revitalised lifestyle. Perfect for daily use, this muscle stimulator is the future of personal therapy.

Technical Specifications

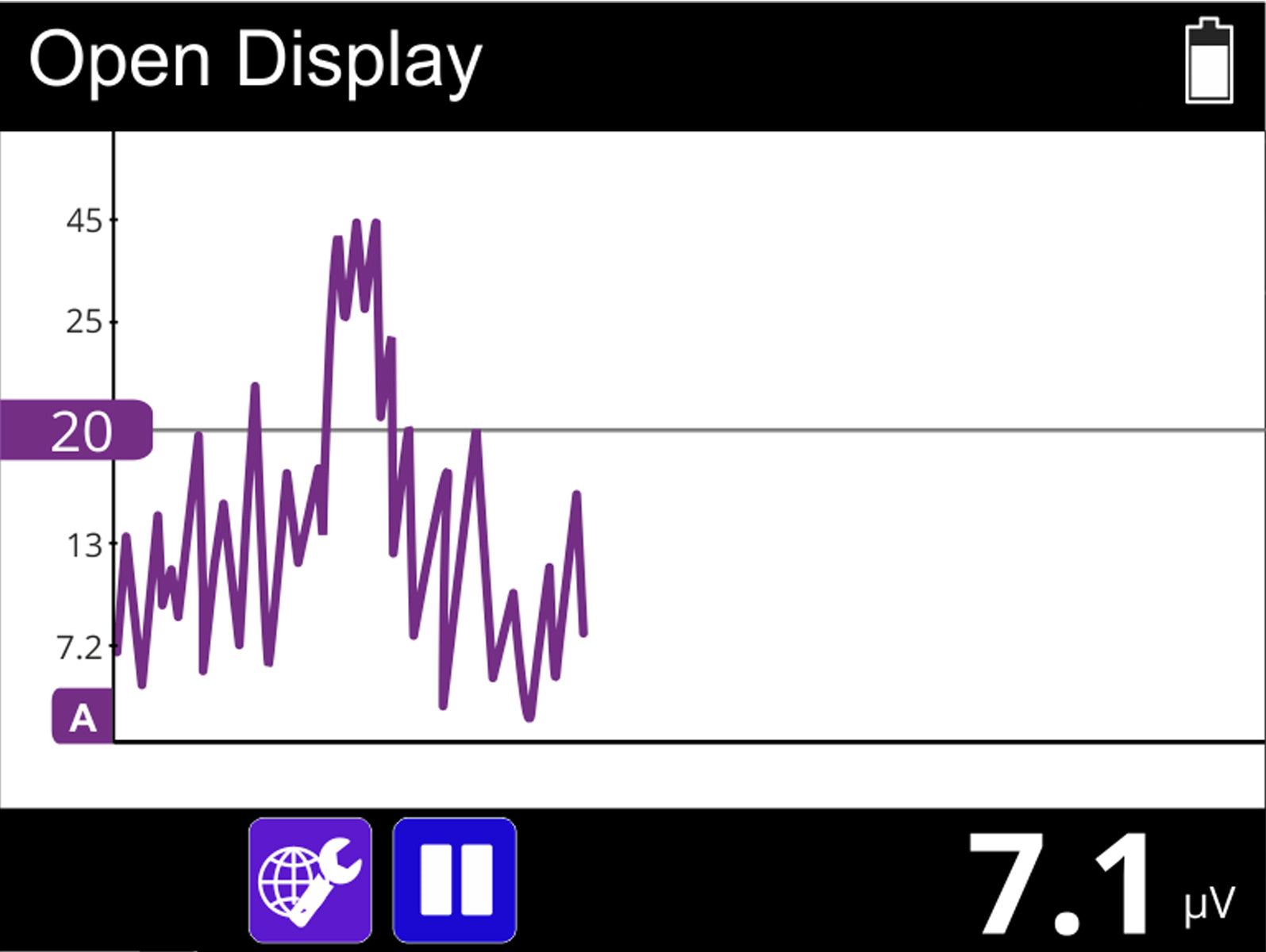

1. EMG

• 1.0 Single channel EMG
• 1.1 EMG Range: 0.2 to 2000 μV RMS (continuous)
• 1.2 Sensitivity: 0.1 μV RMS
• 1.3 Accuracy: 4% of μV reading ±0.3 μV at 200 Hz
• 1.4 Selectable Bandpass filter – 3db Bandwidth:
  • Wide: 18 Hz ±4 Hz to 370 Hz ±10% (below 235 μV: 10 Hz ±3 Hz to 370 Hz ±10%)
  • Narrow: 100 Hz ±5% to 370 Hz ±10%
• 1.5 Notch filter: 50 Hz (Canada 60 Hz) – 33 dB (0.1% accuracy)
• 1.6 Common Mode Rejection Ratio: 130 dB minimum @ 50 Hz
• 1.7 Work / Rest periods: 2–99 seconds
• 1.8 Number of Trials: 2–99

2. NMES, TENS and ETS

• 2.1 Single channel Stimulator
• 2.2 Amplitude: 0–90 mA into 500 Ω load (max limited to 86 mA at 1000 Ω, 65 mA at 1500 Ω)
• 2.3 Type: Constant current, maximum output voltage 180 V (+10 / -30 V)
• 2.4 Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
• 2.5 Pulse width: 50–450 μS (preset), 50–330 μS (custom, ±10% accuracy)
• 2.6 Pulse rate: 2–100 Hz (±5% accuracy)
• 2.7 Work / Rest periods: 2–99 seconds
• 2.8 Time: 1–99 minutes
• 2.9 Ramp up time: 0.1–9.9 seconds
• 2.10 Preset and user-programmable treatment programs
• 2.11 Automatic output shut-off on open electrode detection above 10 mA (±2 mA)

Battery

• Battery set: 4 × 1.5V AAA
• Low battery indication at 4.2–4.4 V (±0.2 V); automatic shut-off below this level
• Auto power-off when inactive (1 minute in settings, 0 mA stimulation)
• Average battery life: 14–18 hours in STIM mode, 28 hours in EMG mode

Service Life & Operating Conditions

• Expected service life: 5 years (extended with careful use)
• Operating: +5°C to +40°C, 15–90% humidity
• Storage & transport: -25°C to +70°C, 15–90% humidity

Physical

• Dimensions: 150 × 89 × 35 mm
• Weight: 140 g (without batteries)
