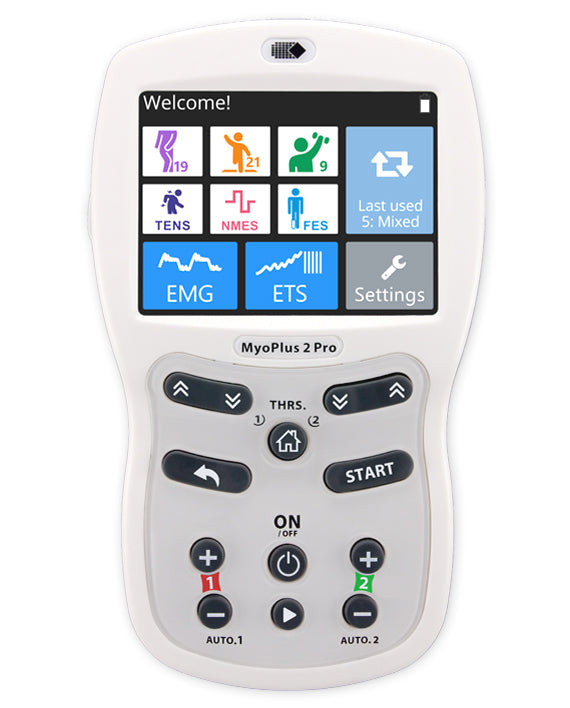

Neurotrac Myoplus PRO 2 with Wireless Software Kit - Advanced EMS & TENS for Pain Relief & Muscle Training

The Neurotrac Myoplus PRO 2 with its wireless software kit is the ultimate solution for Aussies seeking advanced muscle stimulation and pain relief. Designed with state-of-the-art technology, this device caters to both professional physiotherapists and home users, delivering powerful results in muscle strengthening and rehabilitation.

Key Features & Benefits:

• Wireless Software Kit: Monitor and customise your sessions with ease from your desktop.
• Advanced EMS & TENS Modes: Target specific muscle groups and manage pain effectively.
• Customisable Programmes: Tailor your therapy with up to 5 personal settings for precise treatment.
• Ergonomic Design: Sleek, user-friendly interface ensures a hassle-free experience.

Ideal for:

• Athletes looking to enhance their training and recovery process.
• Individuals seeking effective pain management options.
• Physiotherapists providing personalised treatments to clients.

This Neurotrac device supports a wide range of applications from muscle strengthening, rehabilitation, to pain management, making it a versatile choice for professionals and home users alike. With its cutting-edge wireless capabilities, enjoy the freedom and flexibility to track and optimise your health regime.

Invest in the Neurotrac Myoplus PRO 2 today for a smarter, pain-free tomorrow. Proudly available for the Australian market, ensuring you get the best support and service.

Technical Specifications

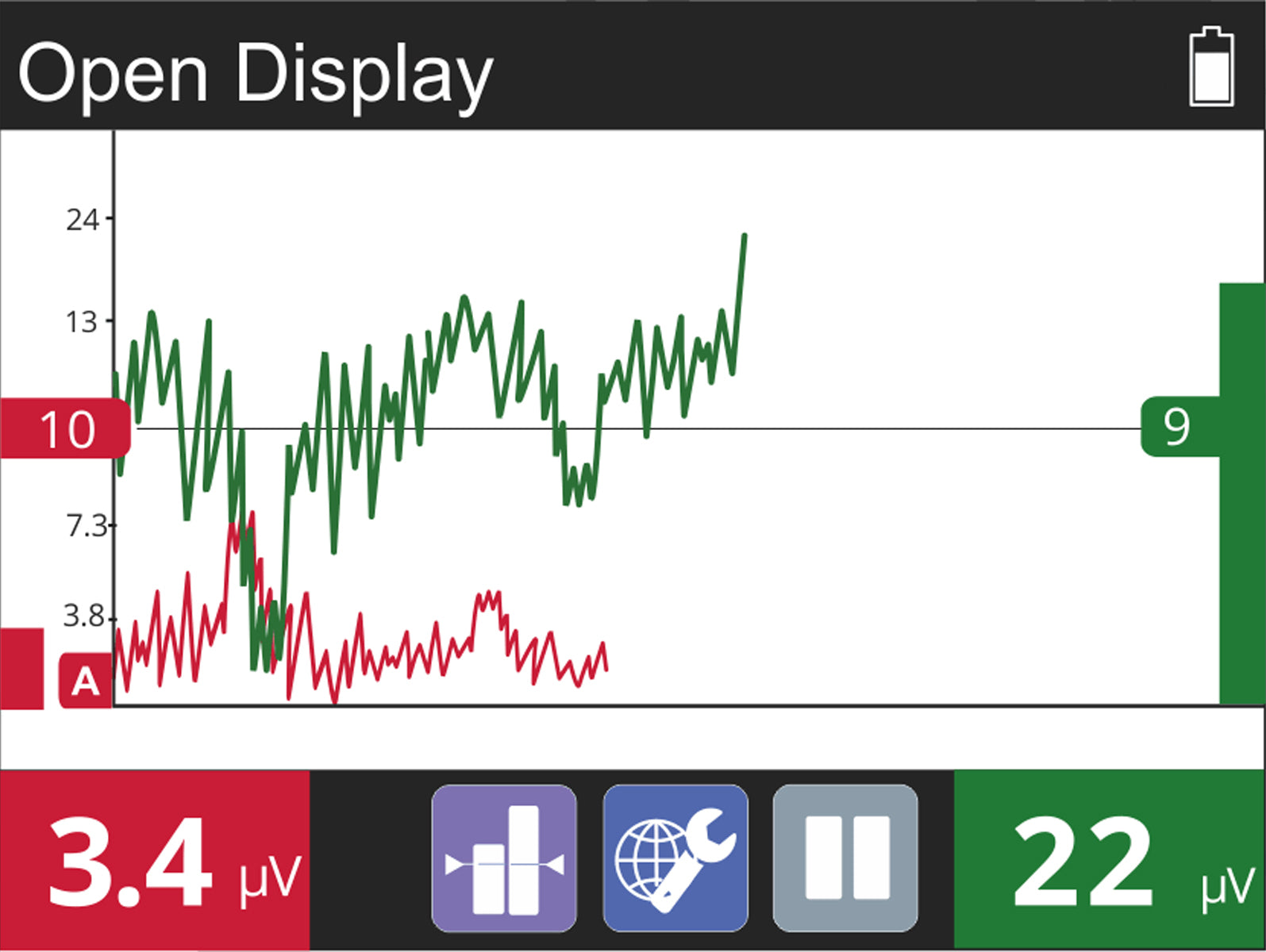

EMG (Biofeedback)

• Channels: Dual channel EMG
• Range: 0.2 – 2000 μV RMS (continuous)
• Sensitivity: 0.1 μV RMS
• Accuracy: 4% of μV reading ±0.3 μV at 200 Hz
• Selectable Bandpass Filter (3dB Bandwidth):
  • Wide: 18 Hz ±4 Hz to 370 Hz ±10% (below 235 μV: 10 Hz ±3 Hz to 370 Hz ±10%)
  • Narrow: 100 Hz ±5% to 370 Hz ±10%
• Notch Filter: 50 Hz (Canada 60 Hz) – 33 dB (0.1% accuracy)
• Common Mode Rejection Ratio: 130 dB minimum @ 50 Hz
• Work / Rest Periods: 2 – 99 seconds
• Number of Trials: 2 – 99

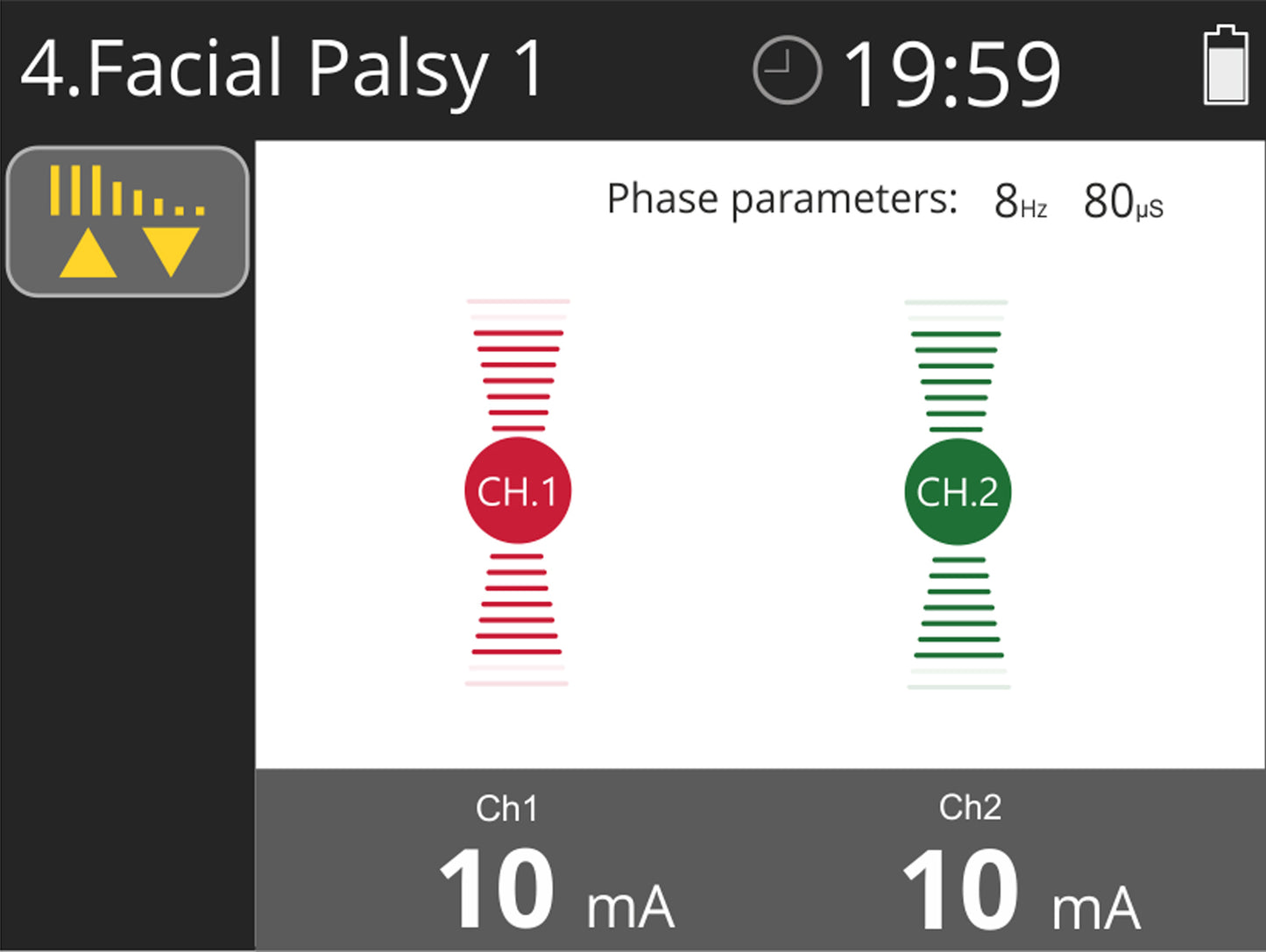

STIM (Neuromuscular Stimulation)

• Channels: Dual channel stimulator
• Amplitude: 0 – 90 mA into 500 Ω load (max 75 mA at 1000 Ω, 50 mA at 1500 Ω)
• Type: Constant current, maximum output voltage 70 V (+5 / -10 V)
• Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current
• Pulse Width: 50 – 450 μS (±2% accuracy)
• Pulse Rate: 2 – 100 Hz (±2% accuracy)
• Work / Rest Periods: 2 – 99 seconds
• Time: 1 – 99 minutes
• Ramp Up Time: 0.1 – 9.9 seconds
• Programs: Preset and user-programmable treatment programs
• Safety: Automatic output shut-off with detection of open electrode above 0.5 mA

Battery

• Battery set: 4 × 1.5V AA
• Low battery indication at 4.4 V (±0.2 V)
• Automatic shut-off when voltage drops below this level
• Auto power-off when inactive (1 minute in settings, 0 mA stimulation)
• Average battery life:
  • MyoPlus 2: 12 – 16 hours in STIM mode, 25 hours in EMG mode
  • MyoPlus 4: 8 – 16 hours in STIM mode, 25 hours in EMG mode

Environmental Conditions

• Operating: +5°C to +40°C, 15–90% humidity
• Storage & Transport: -25°C to +70°C, 15–90% humidity

Physical

• Dimensions: 150 × 89 × 35 mm
• Weight: 0.16 kg (without batteries)
