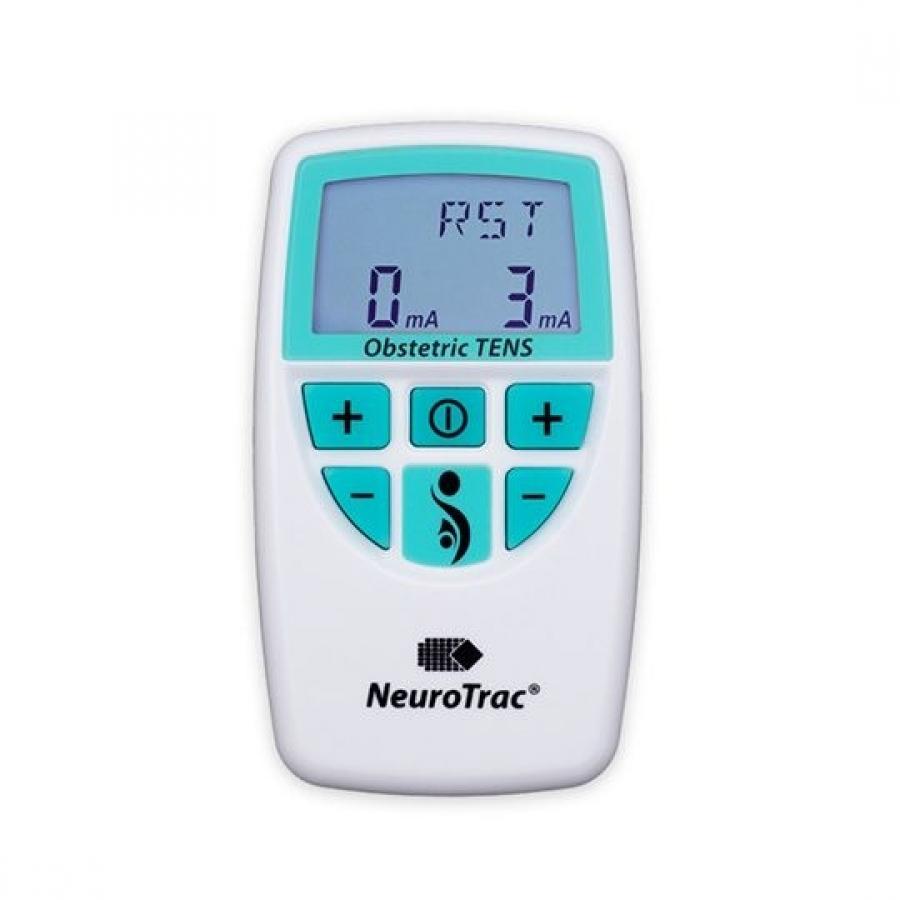

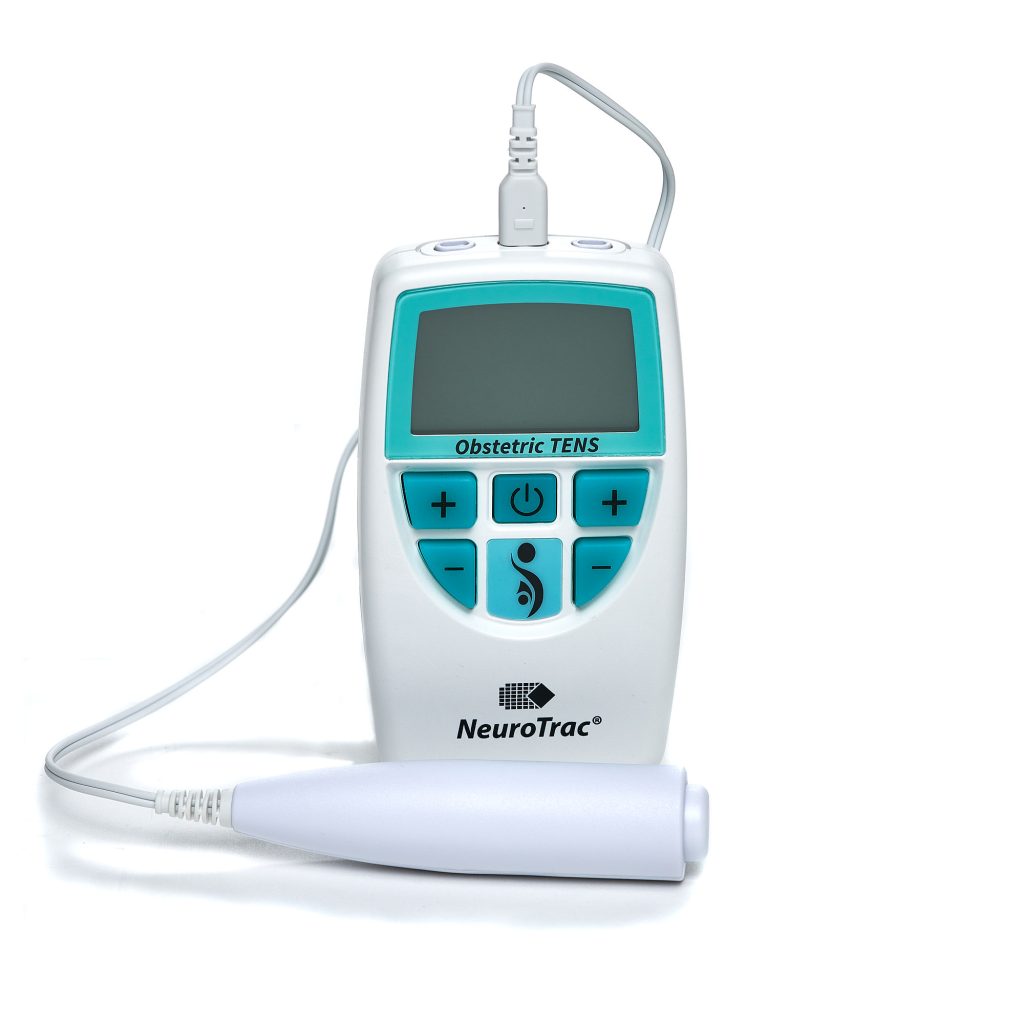

NeuroTrac TENS Labour Pain Relief Unit – Dual Channel Digital Obstetric TENS for Natural Birth Support with Boost Button & LCD

Experience a more comfortable and empowered birth with the NeuroTrac TENS Labour Unit, a trusted drug-free solution for managing labour pain. Designed specifically for Aussie mums, this dual channel digital obstetric TENS machine provides targeted pelvic pain relief during childbirth using gentle, safe electrical impulses.

With a dedicated Labour Pain program and an easy-to-use remote Boost switch, you can increase pain relief instantly during contractions. The bright backlit LCD screen ensures visibility even in low-light conditions—perfect for those early labour hours at home or hospital. Larger keypad buttons make this unit simple to operate, even with trembling hands or in the middle of labour.

Compact, lightweight and clinically reliable, the NeuroTrac TENS is a go-to choice for expectant mums seeking a natural birth plan. It’s non-invasive, easy to use, and ready to go right out of the box—with everything you need included.

Key Features:

• Dual channel with isolated circuits
• Boost mode for enhanced pain control during contractions
• Pre-set labour pain relief program
• Bright LCD screen for low-light use
• Large, user-friendly buttons
• Compact, lightweight and portable
• One-year warranty for peace of mind

Technical Specifications:

• Dual channel: individually isolated circuits
• Amplitude: 0–90 mA into 500 Ohm load (actual mA may be lower depending on electrode impedance)
• Max current: 70 mA at 1000 Ohms, 65 mA at 1500 Ohms
• Type: Constant current with max output voltage of 180V (+10 / -30V)
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC
• Pulse width: 220μS (±2%)
• Pulse rate: 90Hz in Continuous mode (±2%)
• Modes: Continuous (Boost) and Burst (9 pulses at 150Hz repeating twice/second)
• Ramp-up time: 0.8 seconds from Rest to Boost
• Operation time: Continuous until manually turned off
• Low battery indicator: Battery symbol flashes if voltage drops below 6.9V; will not operate below 6.6V
• Open electrode detection: Output resets to zero if an open circuit is detected
• Dimensions: 108 x 62 x 23 mm

Ideal For:

• Expecting mums looking for a natural labour aid
• Use in hospitals, birthing centres, or at home
• Easy to carry in your hospital bag

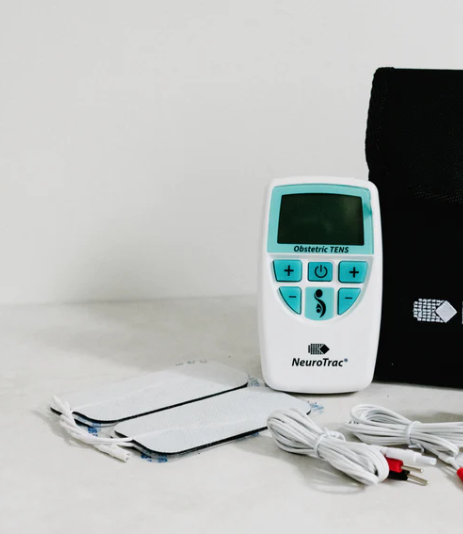

What’s Included:

• NeuroTrac Obstetric TENS unit
• 1 x 9V Battery
• 1 x Pack of 50mm x 100mm skin electrodes
• 2 Lead Wires
• Remote Boost Switch

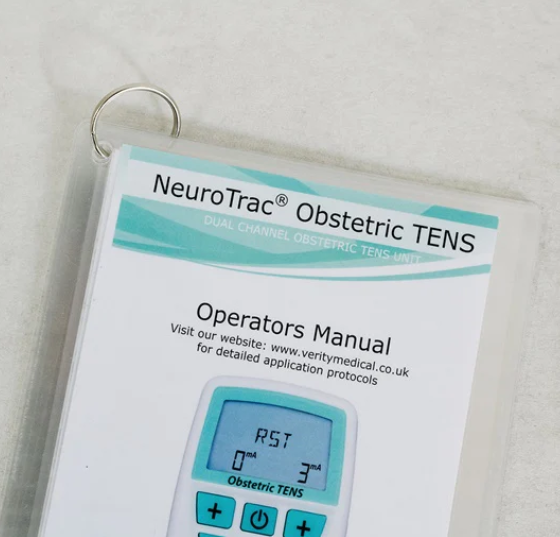

• Operating Manual
• Soft Carry Case

Take control of your birth experience—naturally and confidently—with the NeuroTrac Labour TENS Unit.
